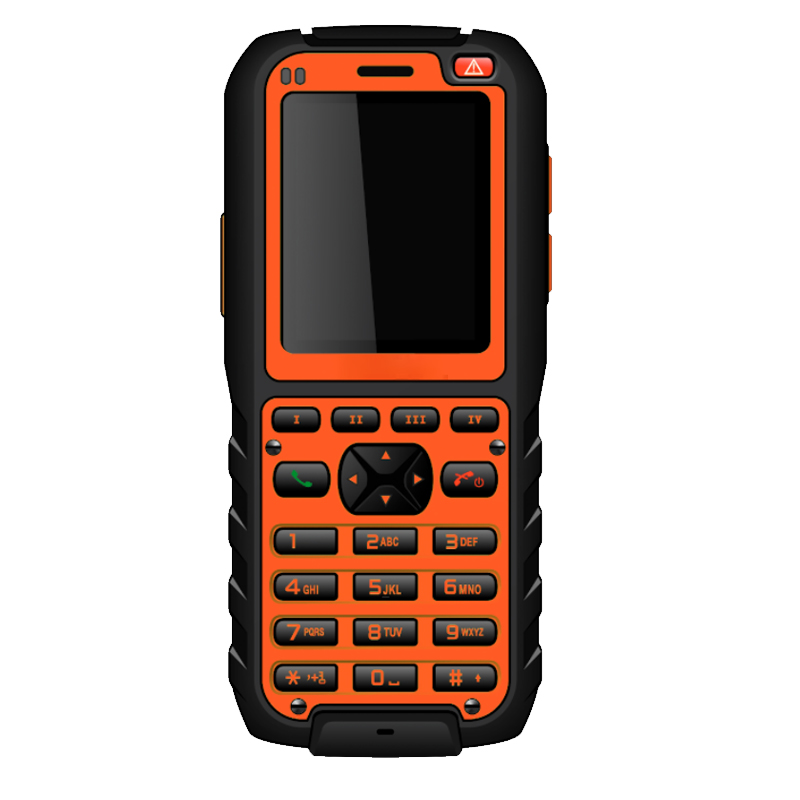

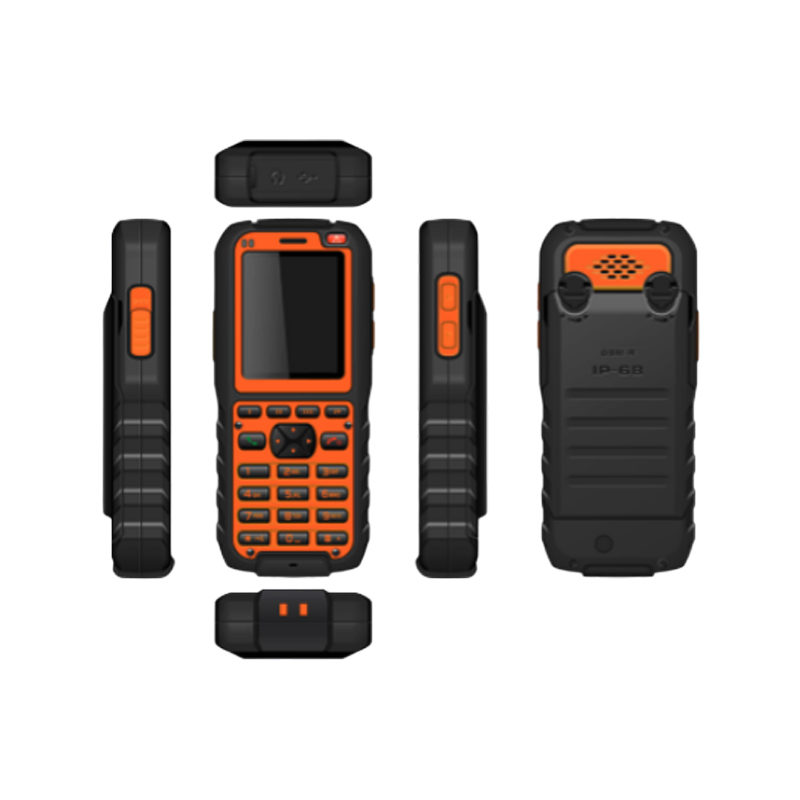

HTRH-220R GSM-R Digital Mobile Communication Handheld Terminal

GSM-R supports secure and reliable driver-signaler communication by bringing together the most effective combination of technology, processes and people.Using a customised fixed telecoms network alongside mobile technology, its processes include journey registration, operational messaging and prioritising driver-signaller communications. Those involved range from drivers and signallers to managers, controllers and maintenance staff.

Inquire Now Next Product

Description
Specification
Benefits

· Three-level Interference Rejection

· Low-temperature Battery

· Standard 3.5mm Headphone Jack

· Positioning (BeiDou / GPS / Galileo / GLONASS)

· Sunlight-readable Display

· Dock + Micro-USB Charging

● Audio Background Noise Suppression

· Dispatching Mode

· Call Control Center under Dispatching Mode

· Railway Authentication Signal (LAS)

· Group Call (VGCS)

· Broadcast Call (VBS)

· eMLPP (Enhanced Multi-Level Precedence and Preemption)

· Functional Number

· Follow Me

· Location-Based Addressing

· Railway Emergency Call

· GPRS Class 10, Class B

· Supplementary Services

· Support for Standard AT Commands and AWT Extended Commands

· SIM Toolkit Application

· Cell Monitoring

· Fall Alert (optional)

· Smart Mobile Platform

Feature	Details
Supported Frequency Bands	GSM-R, GSM 900/1800
Interference Standard	ETSI TS 102 933-1 V2.1.1 IM3 interference resistance
Power Level	Class 4, 2W, HR/FR/EFR/AMR
Connectivity	Micro USB, Bluetooth, GPS, WAP
Display	2.2" QVGA TFT, semi-reflective sunlight-readable screen
Storage	1GB RAM + 8GB ROM; expandable via SDHC card up to 32GB
Battery	Li-ion 5500mAh, low-temperature battery, up to 262 hours standby time
Operating Temperature Range	-25°C to +55°C
Charging Options	Micro-USB charging, single dock, multi-unit dock
Dimensions	142.7 × 63 × 30.8 mm
Weight	270g
Protection Rating	IP68 certified
Certification	CE UIC CODE 950UIC CODE 951

Product Functions & Features

· Device Security & Data Encryption：Supports data encryption and MDM compatibility;

· Work Safety Alarm：Provides "Working Alone" and SIM LOCK independent safety alarm features;

· System Upgrade: Supports local system upgrade via exteral SD cardor remote upgrade via internet;

· Multimedia Applications: Equipped with multimedia features such as camera,gallery, music, radio, and browser;

· Utility Tools: Comes with practical utilities like notepad, calculator,file manager, flashlight, and backup tools;

· Dual SIM Dual Standby: LTE/WCDMAGSM + GSM-R dual SlM dual standby;

· Railway Functions:

1. GSM-R digital trunking calling function, compliantwith 3GPP ASCl features, UlC SRS15.4.0/FRS7.4.0GSM-R specifications;

2. Supports various railway features defined by EIRENEand ClRENE,such as number registration, inquiry.registration, forced deregistration;

3. Provides features like functional number calling,railway speed dial, and railway-specific phone book;

· Function Key Design: Ensures effective emergency railway call initiationeven when touch operation fails; supports PpT groupcall, callback, etc.; designed for "glove operation"and suitable for harsh outdoor environments.
